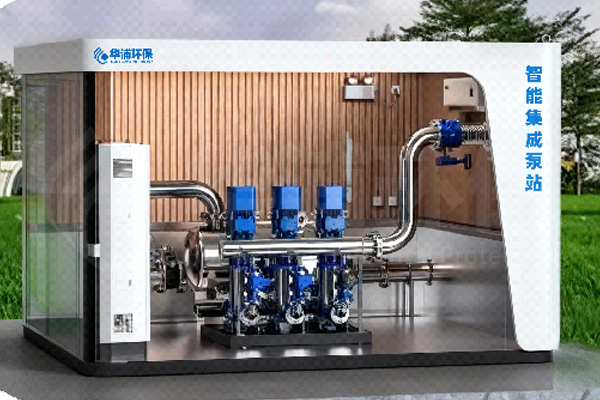

Smart Pump Room

The PY modular smart pump room is suitable for urban and rural municipal water supply, secondary water supply in residential areas, water supply in hospitals, schools, hotels, industrial parks, centralized safe drinking water in rural areas, ecological water replenishment in rivers, and renovation of old pump rooms. It can achieve integrated, intelligent voltage stabilization, safe and energy-saving water supply.


National Service Hotline：400-611-6861
Product Introduction

1. Modular rapid assembly, short cycle, high standards; Integrating equipment, control, security, and disinfection to create a truly "turnkey" project.

2. Adopting professional sound insulation and noise reduction materials and an overall enclosed structure to effectively block the transmission of equipment noise. The core water supply equipment is equipped with high-performance silent motors and optimized fluid structures, significantly reducing operating noise.

Technical Advantage
Equipment safety
Made of food-grade stainless steel, it ensures water quality from the source; with a fully enclosed structure, it prevents the generation of negative pressure; and with UV and ozone dual disinfection, it provides comprehensive protection.
Smart Connectivity
Huapu cloud platform remote monitoring allows for real-time grasp of operational status; fault self-diagnosis and early warning enable proactive maintenance; big data analysis of water usage habits optimizes operational strategies.
High Efficiency and Energy Saving
High-efficiency pump set, with operating efficiency increased by over 20%; intelligent variable frequency water supply according to demand, saving 30%-50% energy; automatic sleep at low flow rates, with extremely low energy consumption.
Stable and durable
The core components are sourced from renowned brands, ensuring stability and durability. The automatic switching between the main and standby pumps guarantees continuous water supply. With excellent anti-corrosion technology, it can adapt to various complex environments.
Process Selection

1. Direct connection boosting technology for municipal pipeline network

Directly connected to the municipal pipeline network, no negative pressure stacking+variable frequency constant pressure, priority utilization of residual pressure, energy-saving and no secondary pollution.

2. Water tank storage and constant pressure technology

Equipped with stainless steel water tanks, suitable for areas with unstable municipal water pressure and frequent water outages, ensuring continuous water supply.

3. Partition and pressure water supply process

Independent control of high/medium/low differentiated pump units to solve the problems of uneven pressure in super high-rise buildings and overpressure in low floors.

4. Rural centralized water supply technology

Adopting an integrated mode of source water intake, purification, and pressurization, suitable for decentralized safe drinking water projects in villages and towns.

5. Upgrading and renovation process for old pump rooms

Modular quick installation, replacing traditional pump rooms in situ, with short construction time, no disturbance to residents, and intelligent upgrade.


Equipment Selection

1. Selection of main structure

Material: Color steel sandwich panel/stainless steel/steel structure anti-corrosion pump room

Form: Integrated pump room, modular pump room with splicing

Environment: Indoor standard type/Outdoor rainproof and antifreeze type

2. Selection of water supply pump units

Pump type: Vertical multi-stage stainless steel centrifugal pump

Configuration: 1 for use and 1 for backup, 2 for use and 1 for backup, multiple pump linkage

Control: Variable frequency constant voltage, automatic rotation, sleep and pressure maintenance

3. Water storage and accessory selection

Water tank: 304/316L food grade stainless steel water tank

Voltage stabilization: diaphragm pressure stabilization tank, water hammer eliminator

Filtering: Pre filter, UV disinfection (optional)

4. Selection of intelligent control system

Standard configuration: PLC+touch screen, PID constant voltage, high and low voltage protection

Optional: IoT remote monitoring, mobile app, data upload, abnormal alarm

5. Safety and protection selection

Protection: anti backflow, anti rotation, overload, leakage, anti freezing

Environment: noise reduction and shock absorption, ventilation, dehumidification, fire alarm

Operation and maintenance: automatic inspection, fault recording, remote maintenance
