Micro nano aeration reoxygenation device

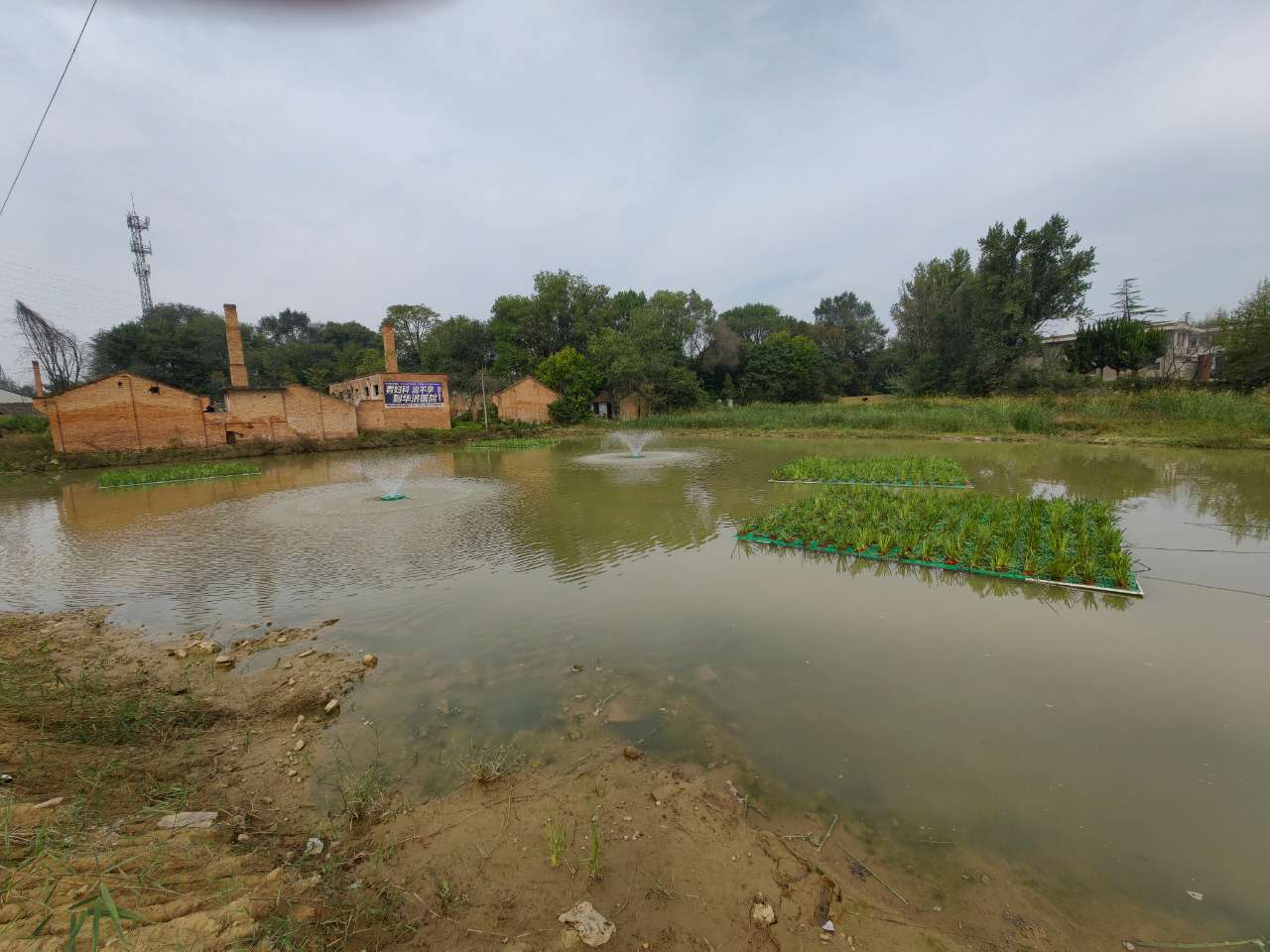

Black and odorous river treatment: Suitable for emergency treatment of urban black and odorous water bodies, it can quickly increase dissolved oxygen in water bodies, efficiently eliminate black and odorous phenomena in water bodies, and effectively improve water clarity and transparency. Protection of drinking water sources: applied to drinking water sources such as reservoirs and lakes, it can inhibit the growth and reproduction of algae in water bodies, reduce the nutrient content in water. Currently, 54 equipment have been put into use in the Thousand Acre Sea Salt Project. Improvement of sewage treatment plant quality: adapted to the biochemical tank aeration system of sewage treatment plants, it can replace traditional aeration equipment, greatly improve oxygen utilization efficiency, achieve energy conservation and consumption reduction, and reduce operating costs. Aquaculture oxygenation: widely used in various aquaculture ponds for fish, shrimp, and crabs, with good oxygenation effect and lower energy consumption, helping to improve aquaculture density and steadily increase aquaculture production. Eutrophication treatment of lakes and reservoirs: Targeting urban landscape water bodies, park lakes, reducing the release of endogenous pollutants in pond sediments, and suppressing the outbreak of blue-green algae and the formation of algal blooms from the source. Industrial wastewater treatment: It can treat various types of industrial wastewater such as chemical, printing and dyeing, and food processing, accelerating the decomposition of difficult to degrade organic pollutants in water. When used in conjunction with ozone equipment, the treatment effect is more prominent.

National Service Hotline:400-611-6861
Product Introduction

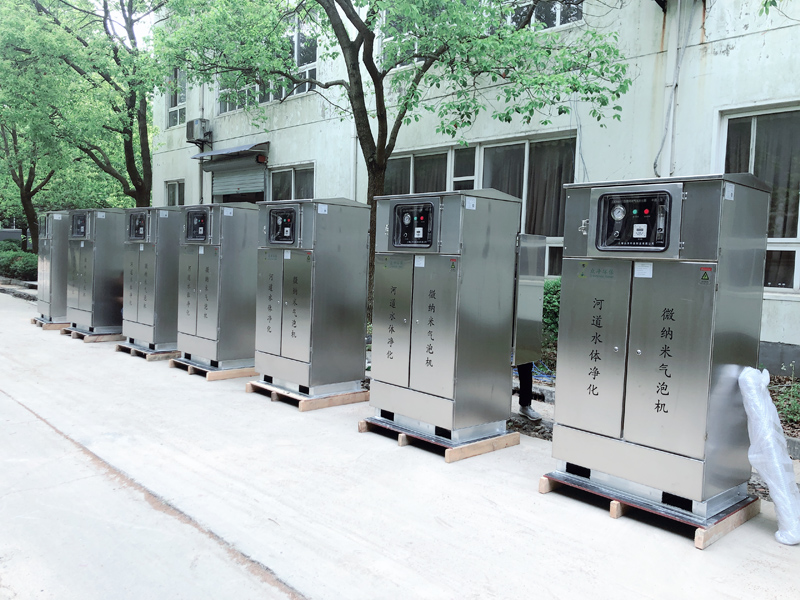

The micro nano aeration and reoxygenation device consists of a nano bubble machine, a dissolved gas system, and a release system. After mixing with water, the gas is pressurized and dissolved in a gas tank, and then released through a gas release device to form micro nano bubbles, which enter the water body at high speed. Micro nano bubbles with a diameter less than 50 μ m (traditional aeration bubbles are a few millimeters) have the following characteristics:


Self pressurized dissolution: The smaller the bubble, the higher the surface tension and internal pressure, which promotes accelerated gas dissolution.


Large specific surface area: Mass transfer efficiency far exceeds that of ordinary bubbles, and oxygen dissolution rate exceeds 85%.


Surface charge: capable of adsorbing suspended solids and colloidal particles in water.


Generating hydroxyl radicals: When bubbles burst, strong oxidizing substances are released, decomposing recalcitrant organic matter.


Technical Advantage
Efficient oxygenation, energy-saving and efficiency enhancing
The oxygen mass transfer efficiency far exceeds traditional aeration, with a dissolved oxygen dissolution rate in water exceeding 85%. It can be supersaturated for oxygenation, and the oxygenation capacity can be increased several times under the same energy consumption. Taking the 2.2kW model as an example, it can cover a water area of 50 square meters and achieve large-scale water oxygenation with low power, resulting in lower energy consumption.
Jie operation and maintenance, strong adaptability
Support floating installation without foundation, not afraid of water level fluctuations, and no hidden dangers of pipeline blockage; The operation noise is low, and it can be used safely around residential areas. The 0.75-3.0kW low-power model is suitable for various water flow scenarios, and the long-term operating cost is low.
Efficient purification and degradation of pollutant gases
Bubble rupture releases hydroxyl radicals, which strongly decompose stubborn organic pollutants. Combined with ozone and ultraviolet processes, it quickly reduces COD, removes water color, eliminates fishy odors, and has outstanding sewage purification effects.
Strengthen the foundation and control the source, improve the water state
Deeply enhance the dissolved oxygen level at the bottom of the water, activate aerobic bacterial activity, inhibit anaerobic decay reactions, and block endogenous release of nitrogen and phosphorus from sediment; At the same time, relying on the charged adsorption of bubbles, flocculation of suspended solids, inhibition of algae, and clarification of water steadily improve the clarity of the water.
Equipment Selection

parameter


reference value


explanation


bubble diameter


Hundreds of nm~10 μ m


The smaller the bubble, the higher the mass transfer efficiency


Oxygenation ability


1.0-1.4 O₂kg/kWh


Intuitively reflect the operational efficiency of the equipment


Single processing capability


10-25m³/h


Select and configure based on the actual scale of the water body


Applicable water depth


1.5-5.0 meters


Shallow water will limit the effectiveness of use


Applicable pH value


5.0-9.0


Exceeding the range can easily reduce the service life of the equipment


Water temperature limit


≤50℃


Ensure stable operation of equipment


rated power


0.75-3.0kW


Adapt to different energy consumption requirements under different working conditions
