Belt Filter Press

The sludge dewatering machine is mainly suitable for sludge concentration and dewatering treatment in industries such as municipal sewage, food processing, animal husbandry and slaughter, pharmaceuticals, chemicals, printing and dyeing, papermaking, and river sludge. It is particularly suitable for materials that are prone to clogging, such as oily sludge, biochemical residual sludge, and light sludge, to achieve sludge reduction and stabilization treatment.

National Service Hotline：400-611-6861
Product Introduction

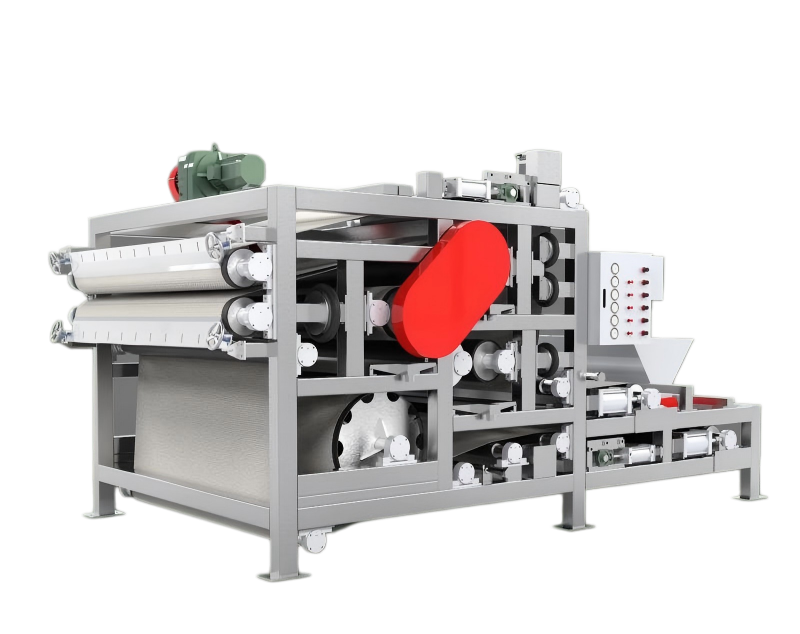

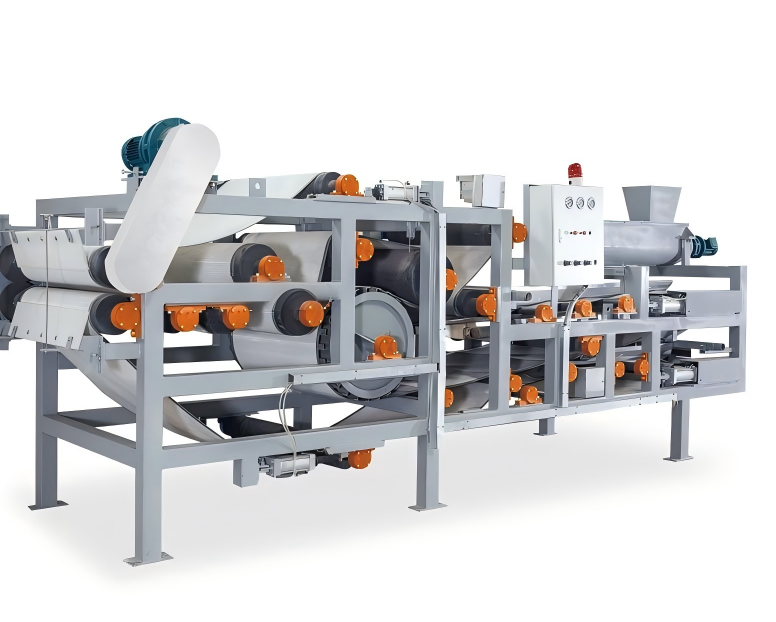

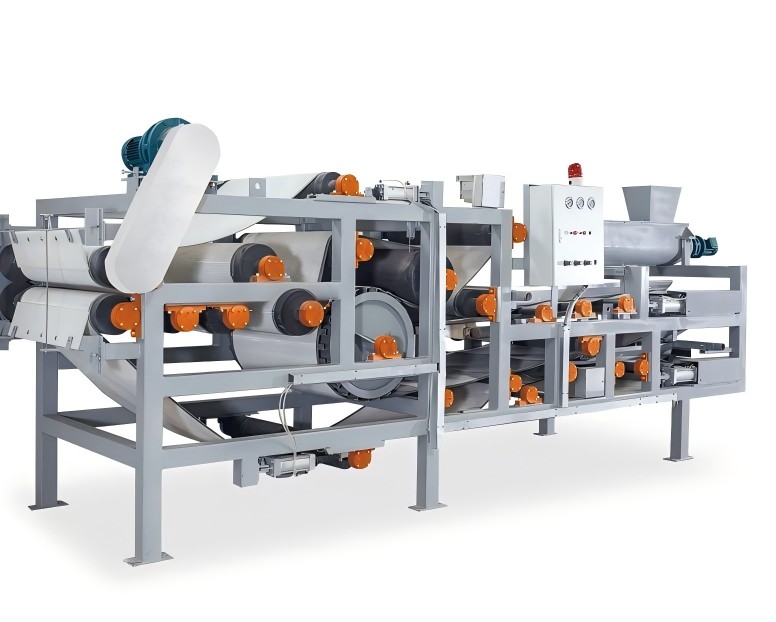

The belt filter press is a continuous, low-energy and fully automatic solid-liquid separation device for sludge. Adopting a four-stage process including chemical flocculation, gravity dewatering, wedge pre-pressing and high-pressure squeezing, it turns dilute sludge with a moisture content of around 99% into dewatered sludge cake with a moisture content between 75% and 85%. The sludge volume is greatly reduced, making transportation and disposal much easier.

Technical Advantage
Not easily blocked
Equipped with automatic cleaning function
Easy to operate
Linkage control, achieving 24-hour continuous automatic operation
compact structure
Compact design with small footprint
Energy-saving and environmental protection
Low electrode consumption, few faults, low noise and vibration, safe operation
Working Principle


Process Selection

1. Direct concentration and dehydration process

Suitable for low concentration biochemical sludge, direct concentration and dewatering without the need for a concentration tank, with a simple process and small footprint.

2. Integrated process of concentration and dehydration

Concentrate first and then dehydrate, suitable for high moisture sludge with large processing capacity and lower effluent moisture content.

3. Pre treatment process of dosing flocculation

Equipped with PAC/PAM automatic dosing system, it improves the coagulation effect of sludge, enhances dewatering rate and sludge dryness.

4. Multi stage series deep dehydration process

Suitable for oily, highly viscous, and difficult to dewater sludge, multi-stage extrusion, with lower moisture content in the sludge cake.

5. Mobile emergency response technology

Skid mounted design, movable operation, suitable for river dredging and emergency sludge treatment scenarios.

Equipment Selection

1. Main model selection

Select according to ring diameter: 131, 201, 202, 301, 302, 401, etc

Select by processing capacity: from small laboratory equipment to large industrial models

2. Selection of ring material

Standard: 304 stainless steel, universal municipal and domestic sludge

Strengthening: 316L stainless steel, acid and alkali resistant, corrosion-resistant, suitable for chemical, electroplating, printing and dyeing sludge

Special: High hardness wear-resistant coating, suitable for sludge with high sand content

3. Drive and control selection

Deceleration motor: variable frequency speed regulation, can adjust the speed according to the sludge concentration

Control: PLC fully automatic operation, automatic feeding, automatic cleaning, fault alarm

Optional: remote monitoring, linked dosing, liquid level linked start stop

4. Selection of auxiliary systems

Flocculation mixing tank: integrated/split type

Dosing device: Automatic dosing of PAC/PAM by metering pump

Cleaning system: automatic spray cleaning, anti clogging, no manual cleaning required

5. Installation and environment selection

Indoor standard type/outdoor rainproof type

Noise reduction and shock absorption, anti-corrosion and insulation, explosion-proof configuration (optional for special working conditions)

Case
Treatment of Domestic Sewage in Zhoujia Village, Gaoling District, Xi'an City
View Details
Equipment Procurement Project of Heyang No. 2 Sewage Treatment Plant Construction Project
View Details
