Product Introduction

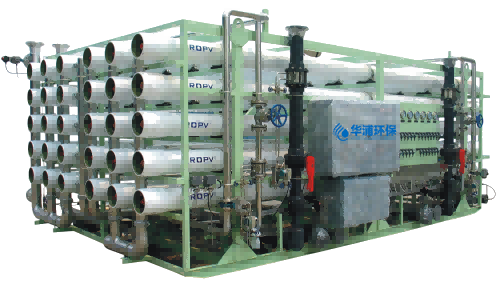

The reverse osmosis host system can be called a reverse osmosis device, which is the heart part of reverse osmosis water treatment equipment. It is mainly composed of reverse osmosis membrane elements, membrane shells (pressure vessels), brackets, etc. The water treated by the reverse osmosis device can remove the vast majority of impurities such as inorganic salts, organic matter, and microorganisms. The rationality of reverse osmosis system design is directly related to the investment cost, economic benefits, service life, and operation process of the entire project.
Process Selection
Influent water quality
Operating temperature: 25 ° C ± 5 ° C
Residual chlorine content:<0.1mg/L
Particulate matter: ≤ 5 µ m
Turbidity:<1NTU
Silicon dioxide content: SiO₂<100mg/L
Ions such as Sr and Ba that are prone to forming insoluble salts: Ipb<0.8Ksp
Sludge Density Index (SDI):<5.0
Produced water quality
System desalination rate: 95-99%
System recovery rate: 60-80%
Primary reverse osmosis water conductivity: ≤ 20μ s/cm
Secondary reverse osmosis water conductivity: ≤ 10μ s/cm
